domestic instalations

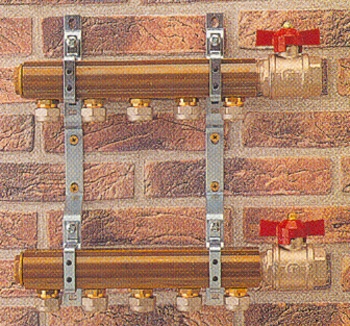

1- Mount the collectors by means of fasteners against the wall.

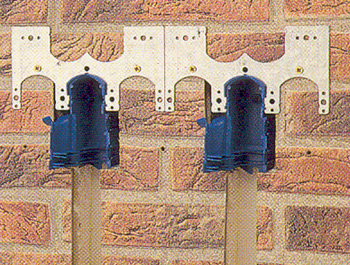

2- Mount the steel bracket together withthe plastic boxes against the wall.

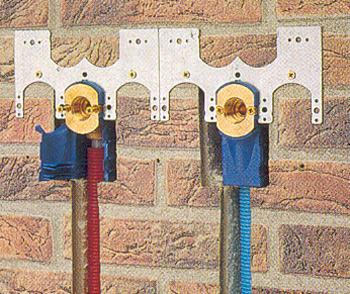

3- Slide the screw and the compression ring over ENAPEX-pipe in this order.Pusth the cone into th pipe, and tighten the screw.

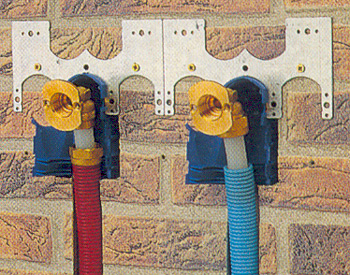

4- Push the brass connection piece together with the fitting and the pipe into the box,and fasten it by means of screwdriver.Afterwards,close the door.

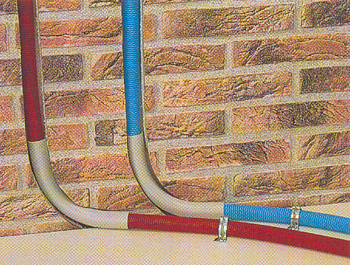

5- Push the pipe through the plastic wall-curve, and fix it to the floor.

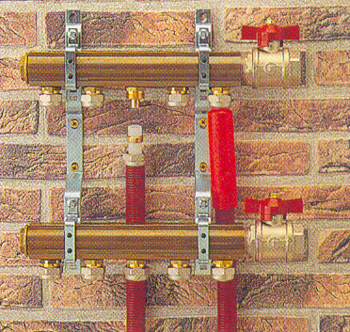

6- Connect the pipes to the collector using the ENAPEX-fittings.
