ENAPLAST is one of the leading pioneer companies in Egypt, manufacturing Plastic Piping Systems for Potable Water, Sanitary Drainage, Irrigation, and Telecommunication since 1988, in Sadat City, Egypt. These products are produced in two (2) different factories as follows:
ENAPLAST Pipes Factory which is equipped with the most advanced Extrusion Lines from Europe and South East Asia to produce PE, PP and PEX pipes. Extrusion Lines have different capacities to produce different pipe diameters.
ENAPLAST Fittings Factory is also equipped with the most modern Injection Molding Machines, also from Europe and South East Asia to produce pipe fittings and accessories for the different applications.
Both factories are equipped with the necessary Quality Control equipments and Testing Laboratory. Both factories are applying for ISO 9000, ISO 14000 & ISO 18000 Certifications.

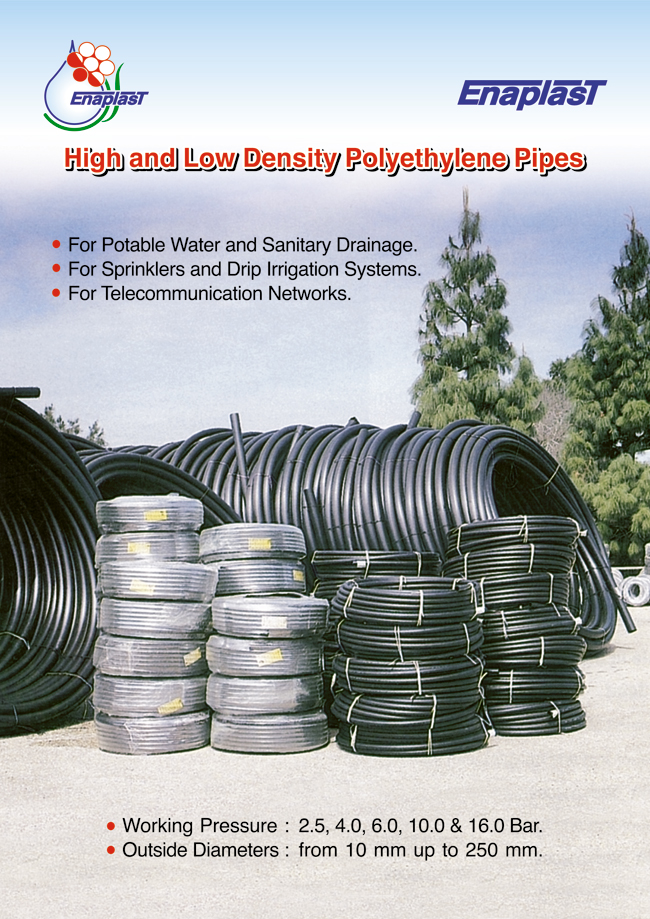

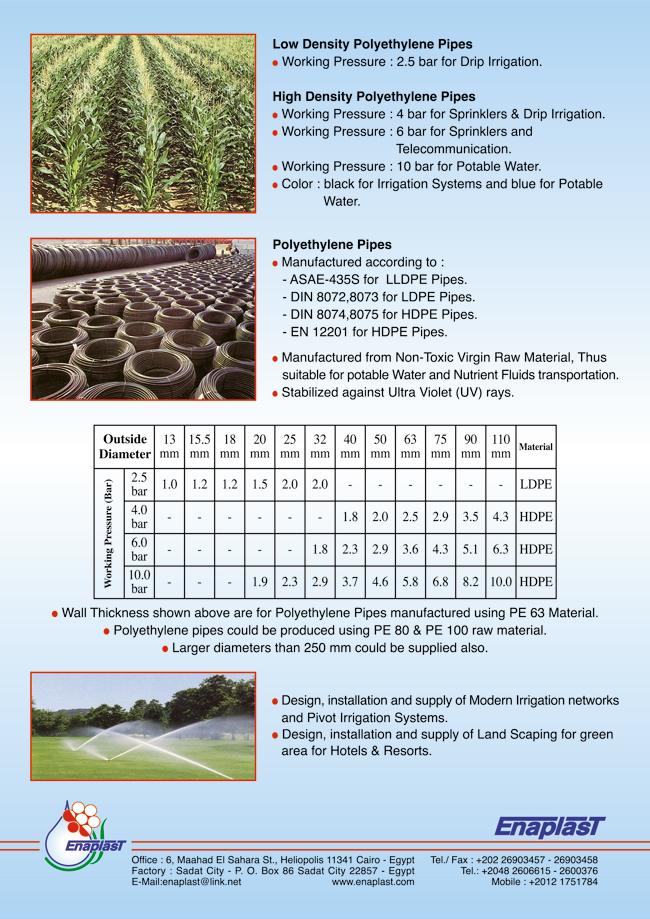

1) LDPE & HDPE Pipes .. (Show Details)
|
|
Polyethylene Pipes
|
|
Product Description:
|
|
ENAPLAST manufactures Polyethylene Pipes and Fittings from High Density Polyethylene (HDPE), Linear Low Density Polyethylene (LLDPE) and Low Density Polyethylene (LDPE) in diameters from 4 mm to 110 mm. larger diameters could be produced upon request. All products are stabilized against UV rays using Carbon Black in order to increase their Environmental Stress Cracking Resistance (ESCR). |
|
Product Charactristics:
|
-
LLDPE pipes are produced for Drip Irrigation Systems with 2.5 bars working pressure, according ASAE-435-S.
-
LDPE pipes are produced for Drip Irrigation Systems with 2.5 bars working pressure, according to DIN 8072/8073.
-
HDPE pipes are produced for Sprinkler Irrigation Systems with 4.0 bars working pressure, according to DIN 8074/8075.
-
HDPE pipes are produced for Telecommunication systems with 6.0 bars working pressure, according to DIN 8074/8075.
-
HDPE pipes are produced for Potable Water Networks with 10.0 bars working pressure, according to DIN 8074/8075.
Compression Fittings, Butt Fusion Fittings and Electro-Fusion Fittings, imported from major European manufacturers in Spain, Switzerland and Italy, are used to connect ENAPLAST Polyethylene pipes.
|
|
Applications:
|
|
ENAPEX pipes and Fittings are used for Hot and Cold water Systems for both Plumbing and under Floor Heating in housing projects, hotels, hospitals, and touristic resorts. |
|
|

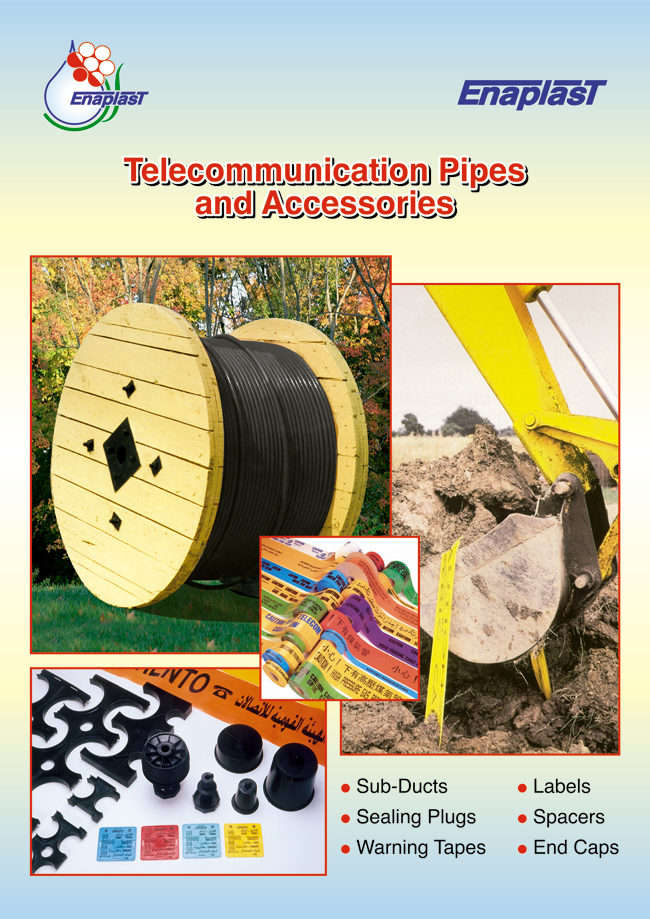

2) Telecommunication .. (Show Details)
|
|
|

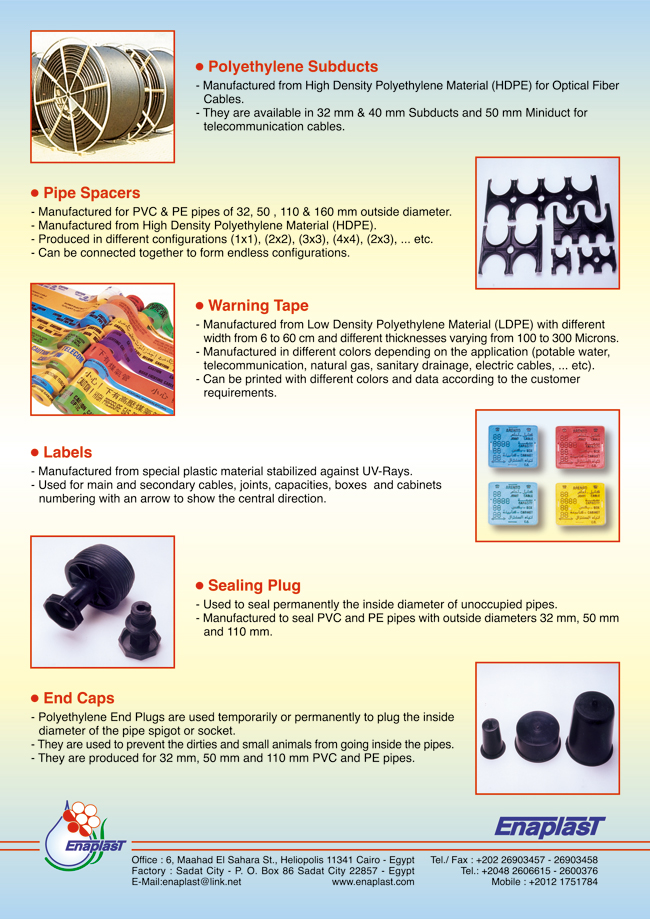

Telecommunication Pipes & Accessories
|
|
Product Description:
|
|
ENAPLAST manufacturers Polyethylene pipes for Optical Fiber Cables (FOC) from High density Polyethylene (HDPE) according to DIN 8074/8075. Dimensions are 32mm, 40mm, and 50mm.
|
|
Product Charactristics:
|
-
Polyethylene Sub duct and Mini duct:
Polyethylene PE pipes can be produced with smooth inside surface or striated inside surface for minimum friction between cables and pipes, or Silicon coated inside surface for lubrication.
Polyethylene pipes are coiled on wooden or metal drums in lengths of 1000-3000 Meters/drum. It can be also delivered in form of coils in lengths up to 1500 Meters per coil depending on the size of pipe.
-
Pipe spacers
Polyethylene Pipe Spacers are manufactured for PVC Pipes of 32, 50, 110 and 160 mm outside diameter. Pipe Spacers are manufactured from High Density Polyethylene Material (HDPE), and are produced in different configurations: (1x1), (2x2),(3x3),(4x4), (2x3)….etc., and they can be connected together to form endless configurations.
-
Sealing Plugs
Sealing Plugs are used permanently to seal the inside diameter of 32, 50 and 110 mm PVC and PE pipes unoccupied with cables using rubber material. Sealing Plugs are manufactured from High Density Polyethylene Material (HDPE).
-
End Caps
Polyethylene End Plugs are used temporarily or permanently to plug the inside diameter of the pipe spigot or socket. They are used to prevent the dirties and small animals from going inside the pipes. They are produced for 32,50 and 110 mm PVC and PE pipes.
-
Warning tape
Warning tape is manufactured from Low Density Polyethylene Material (LDPE) with different width varying from 6 – 60 cm and different thicknesses varying from 100 – 300 Microns, with different colors depending on the application (Telecommunication, Potable Water, Natural Gas, Sanitary Drainage, Electric Cables…etc.). Warning Tapes are printed with different colors and data according to the customer requirements.
-
Labels
Labels are used for Main and Secondary Cables, joints, capacities, Box or Cabinet Number and to show the Central direction. They are manufactured from a special plastic material stabilized against UV-Rays. Labels are fixed using different length of cable ties to suit the different sizes of joints or cables.
|
|
Applications:
|
|
ENAPLAST Telecommunication Pipes and accessories are used for Optical Fiber Cables (FOC) networks projects.
|
|
|

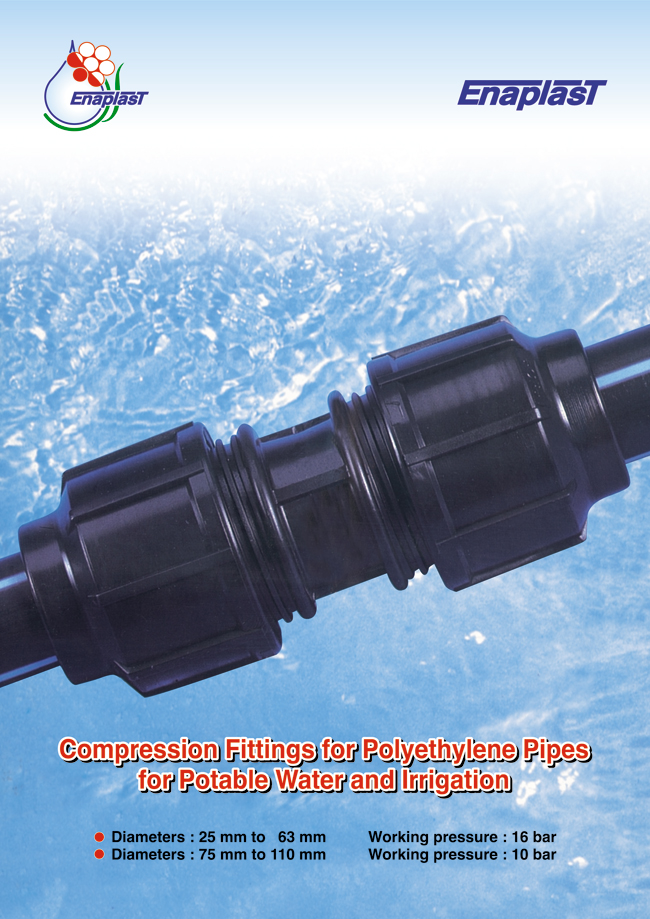

3) COMPRESSION FITTINGS .. (Show Details)
|
|
|
PP Compression Fittings
|
|
Product Description:
|
|
ENAPLAST produces PP Compression Fittings for PE pipes manufactured according to DIN 8074/8075. Dimensions are from 25 mm to 110 mm.
|
|
Product Charactristics:
|
|
ENAPLAST PP Compression Fittings can withstand the following working pressures:
|
| Diameters: 25mm – 63mm |
Working Pressure: 16 Bar. |
| Diameters: 75mm – 110mm |
Working Pressure: 10 Bar. |
|
Applications:
|
|
ENAPLAST PP Compression Fittings are used for Potable Water, Sprinkler and Drip Irrigation and Telecommunication Networks.
|
|
|
4) Enapex Pipes & Fittings .. (Show Details)
|
|
PEX Pipes & Fittings For Hot & Cold Water Applications
|
|
Product Description:
|
|
ENAPLAST manufacturers ENAPEX pipes from Cross-Linked Polyethylene (PEX) according to DIN 16892/16893. Dimensions are from 16 mm to 75 mm.
|
|
Product Charactristics:
|
ENAPEX System can withstand high temperature up to 100º C with a lifetime of 50 years. Working pressure varies between 20 bars at 20º C, 12.8 bars at 60º C and 8.6 bars at 95º C. Fittings are either from brass or plastic material (Poly Sulphone) which also withstands high temperatures up to 400°C.
ENAPEX Pipes are light in weight, easy to install, don't rust or corrode and are not affected by Salts, Cement, Gypsum or any other building material. It can be installed in two (2) ways:
-
Manifold system or Pipe into Pipe System :
Where ENAPEX Pipes are installed into a Low Density Polyethylene Pipe sleeves, and connected from one side to a brass or Poly Sulphone (PPSU) manifold for Cold or Hot water, and from the other side to the brass or PPSU elbow connected to the water tap. Connection is easy to do with a ring and nut from both sides. In case of maintenance, damaged pipe is withdrawn from the sleeve pipe and replaced by a new ENAPEX pipe.
-
T-System or Traditional System:
where ENAPEX pipes are installed in a traditional way like galvanized steel pipes, using Tees, Elbows….etc.
|
|
Applications:
|
|
ENAPEX pipes and Fittings are used for Hot and Cold water Systems for both Plumbing and under Floor Heating in housing projects, hotels, hospitals, and touristic resorts. |
|
|
5) Power Pipe - Drip Irrigation Tubes .. (Show Details)
|
|
Drip Irrigation Tubes
|
|
Product Description:
|
|
ENAPLAST manufactures Power Pipe for Drip Irrigation from Linear Low Density Polyethylene (LLDPE) according to ASAE 435-S "Drip/ Trickle Polyethylene pipes used for irrigation laterals". Dimensions are 10 mm, 13 mm, 16 mm, 18 mm and 20 mm with the capacity to produce larger diameters up to 75 mm. |
|
Product Charactristics:
|
-
POWER PIPE is produced in oval shape to increase the amount of Polyethylene pipe per reel, thus reducing the storage and transportation expenses by more than 50%. Once pressurized to 1 bar, it takes its normal round shape and acts efficiently as any other pipe.
-
POWER PIPE working pressure is 2.5 bars. A sample of each roll is tested in the factory at 6.0 bars for one (1) hour. Burst pressure is not less than 9.0 bars.
-
POWER PIPE is easily installed using normal fittings. It is stabilized against UV rays using 2% Carbon Black minimum as per ASTM 1603-D, to increase the Environmental Stress Cracking Resistance (ESCR).
Compression Fittings, Butt Fusion Fittings and Electro-Fusion Fittings, imported from major European manufacturers in Spain, Switzerland and Italy, are used to connect ENAPLAST Polyethylene pipes.
|
|
Applications:
|
|
Power Pipe is used for Drip Irrigation lateral lines, to irrigate vegetables and trees. |
|
|
6) PVC-U Push-Fit Fitting .. (Show Details)
|
|
|
PVC-U Push-Fit Fittings
|
|
Product Description:
|
ENAPLAST PVC-U Push-Fit Fittings are PVC-U fittings with Rubber Ring Sockets.
The PVC-U Push-Fit Fittings are used to connect PVC-U pipes directly through the Rubber Ring sockets, or to other types of pipes through Flanged Sockets or Flanged Spigots.
The PVC-U Push-Fit Fittings are available in different forms like: Elbows with different angles 90º, 45º, and 22½º, Branches either Equal or Reduced, Flanged Sockets and Flanged Spigots, Reducers, Double Sockets and Repair Couplings. The PVC-U Push-Fit Fittings are available in diameters from 110mm to 315mm.
The Flanged Butterfly PVC-U Valves are also available in diameters 80 (3"), 100 (4"), 150 (6"), and 200 (8").
|
|
Product Charactristics:
|
-
The working pressure for the PVC-U Push-Fit Fittings and the PVC-U Butterfly Valves is 10 Bar at 20ºC.
-
The PVC-U Push-Fit Fittings are easily installed with Rubber Rings lubricated with a suitable lubricant, thus leading to a strong connection without leakage. The Flanged Butterfly PVC-U Valves are easily installed using suitable Bolts and Nuts.
|
|
Applications:
|
|
The PVC-U Push-Fit Fittings and the Flanged Butterfly PVC-U Valves are used to connect Infrastructure pipe lines for Potable Water and Irrigation.
|
|
|

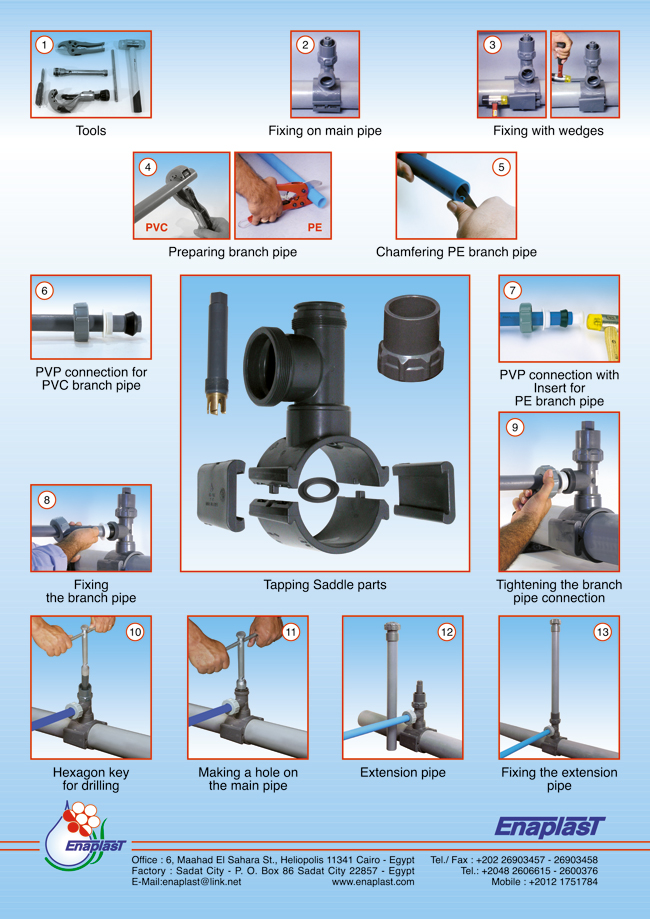

7) PVC-U Tapping Saddle .. (Show Details)
|
|
|
PVC-U Tapping Saddle with Valve And Integral Cutter
|
|
Product Description:
|
ENAPLAST manufactures the PVC-U Tapping Saddle with Valve and Integral Cutter for House Connections, a unique product for Tapping under Life Conditions. The PVC-U Tapping Saddle is equipped with a Brass Cutter embedded into the Valve Stem.
The PVC-U Tapping Saddle could be installed on both PVC and PE main lines with outside diameters from 50mm to 225mm.
The PVC-U Tapping Saddle is used to get a branch from the main line without interrupting the water flow. The branch pipe could be any kind of pipe: PVC-U, or PE, or PPr, or GI, or Cu pipes. The branch pipe outer diameter varies between 20mm (½") and 63mm (2"). The branch direction is at 90º to the main line pipe.
|
|
Product Charactristics:
|
-
The working pressure for the PVC-U Tapping Saddle with Valve and Integral Cutter is 10 Bar at 20ºC.
-
The PVC-U Tapping Saddle is easily installed without bolts or nuts. Due to the tight connection between the Tapping Saddle and the main pipe line during installation, due to the presence of a special Rubber Gasket, Tapping under Life Condition causes no water leakage or water contamination like in the installation of traditional Cast Iron or Brass Saddles.
-
While tapping the main line under life condition, the cut piece of the pipe is kept inside the Brass Cutter due to an anti-clockwise thread inside the cutter, thus preventing this part from flowing through the pipe causing possible blockage.
|
|
Applications:
|
|
The PVC-U Tapping Saddle with Valve and Integral Cutter is used as a house connection to supply potable water for the consumers by taking a branch from a main pipe line to the consumer place without interrupting the water flow in the main pipe line. The valve is used to control the water flow by the water authorities.
|
|
|

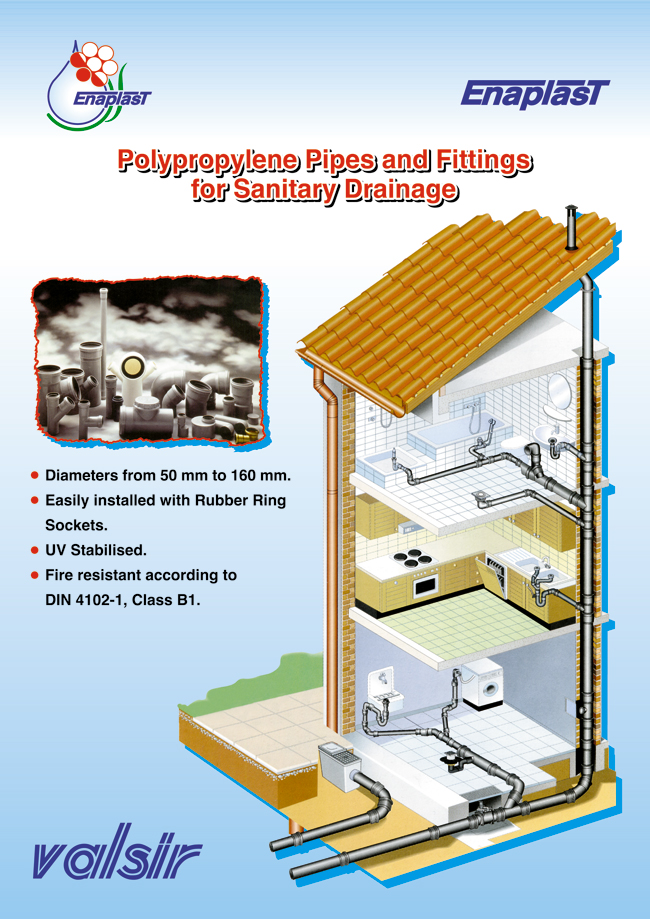

8) Valsir Sanitary Drainage .. (Show Details)
|
|
Polypropylene (PP) Pipes & Fittings For Sanitary Drainage
|
|
Product Description:
|
|
ENAPLAST is producing Polypropylene (PP) Pipes in collaboration with Valsir - Italy. The system is produced from a grey self-extinguishing polypropylene material which allows the fire to be self-extinguished within less than 12 seconds, according to DIN 4102-class B1. Dimensions vary between 50mm to 160mm.
|
|
Product Charactristics:
|
-
High dimension stability, which allows coupling with an elastomeric ring.
-
Good impact resistance.
-
Excellent resistance to hot water from washing machines or dishwashers.
-
Surface structure making fluid discharge easier, with no deposits or scaling.
-
Negligible condensate due to low thermal conductivity.
-
High molecular weight of the raw material used, and practically no signs of ageing.
-
Special fittings and pipes are extremely light weight owing to the low specific gravity and design.
-
High resistance to detergents and surface-active products. In general, PP is not etched by of most of the acids and mineral bases, even at high concentrations and temperature over 60º C. the product is sensitive only to oxidizing reagents, such as chlorophonic acid, fuming sulphuric acid (100%), fuming nitric acid and halogens even at room temperature, at which polypropylene solvent do not practically exist.
-
Fully compliance with DIN 19560. Lip seals already inserted and secured. The special material used for seals makes them as long-lasting as the pipe itself.
-
Pipes and fittings are functionally packed to make storage and handling operations easier, without any risk of ovalization or crushing.
-
Owing to the wide range of sizes, length and types available, these pipes can be fitted to any installation quickly and economically.
-
Very easy to assemble without requiring the use of glues or adhesives, which are expensive and often release toxic fumes.
-
Easy upkeep or replacement.
-
The type of union makes connection to various types of piping quick and easy.
|
|
Applications:
|
|
The Polypropylene Pipes and Fittings are used for Sanitary Drainage inside buildings like houses, hotels, hospitals, laboratories, schools, touristic resorts, and similar buildings.
|
|
|
9) RKD Pivot Irrigation System .. (Show Details)
|
|
Center Pivot Irrigation Systems
|
|
Product Description:
|
|
The Center Pivot Irrigation System is designed to irrigate a complete circle or part of a circle land. The Pivot operates from a single center fixed on a 3m2 concrete platform. The Pivot Irrigation System has the advantage of requiring the least number of manpower: one person is enough to irrigate hundreds of hectares. In addition to the Central Pivot Irrigation System, we can also supply the Lateral Move Irrigation System, the Multi Center Pivot Irrigation System, and the Hippodrome Irrigation System.
|
|
Product Charactristics:
|
-
The framework manufactured from top quality steel is hot-dip galvanized with a minimum protection layer of 100 Microns, which features high durability and corrosion resistance. Pipe wall thickness is not less than 3 mm. Different spans are linked by a cardan-type joint which enables the system to be adapted to a highly uneven land both in radial and tangential fashion.
-
The system movement mechanism consists of a motor-reducer with different powers depending on the relief of the land, the type of soil…etc. The transmission linking the motor-reducer with the wheel-reducer features telescopic rods with cardan joints at either ends. The wheel-reducer is designed to withstand great stress and to work in adverse conditions
-
All the electrical components of the control panel of the system are top quality and are housed in a fiberglass-reinforced polyester cabinet, thus are completely unaffected by weather conditions and do not rust or corrode.
|
|
Applications:
|
|
The Center Pivot Irrigation System is the most economic, easy install, and easy run Irrigation System for large lands.
|
|
